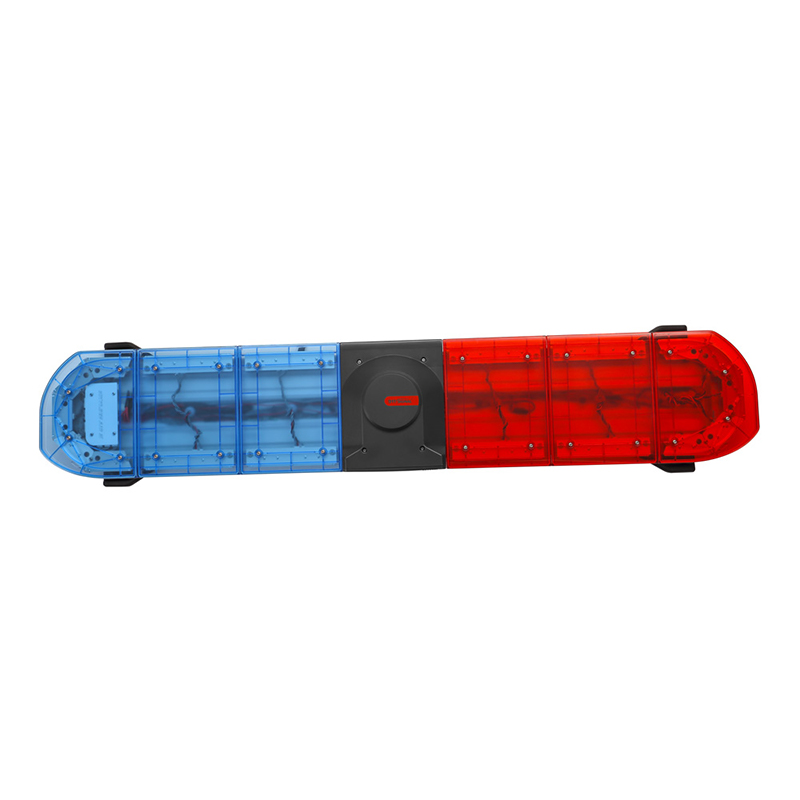

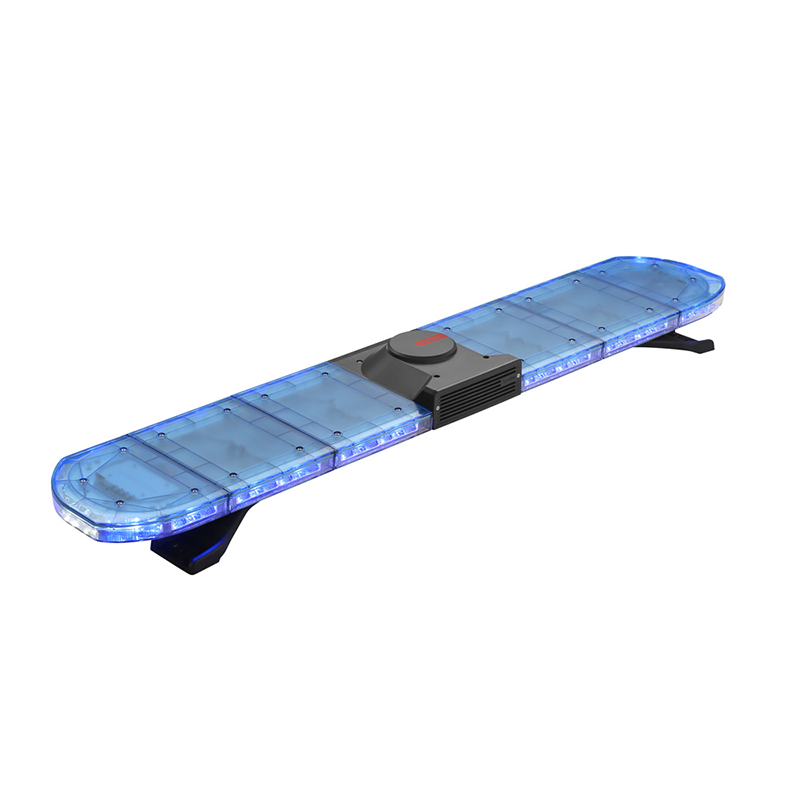

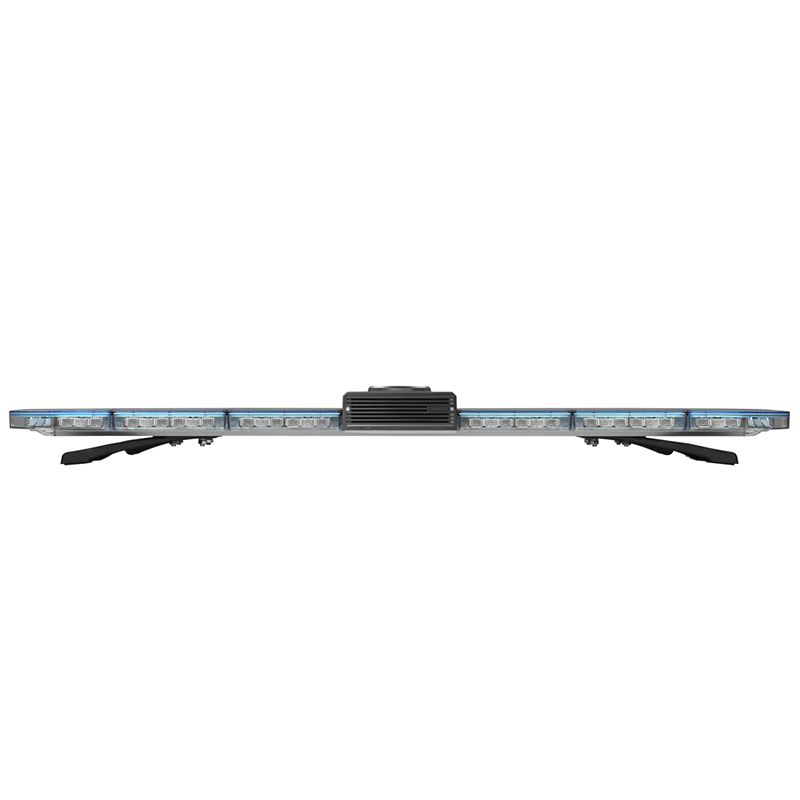

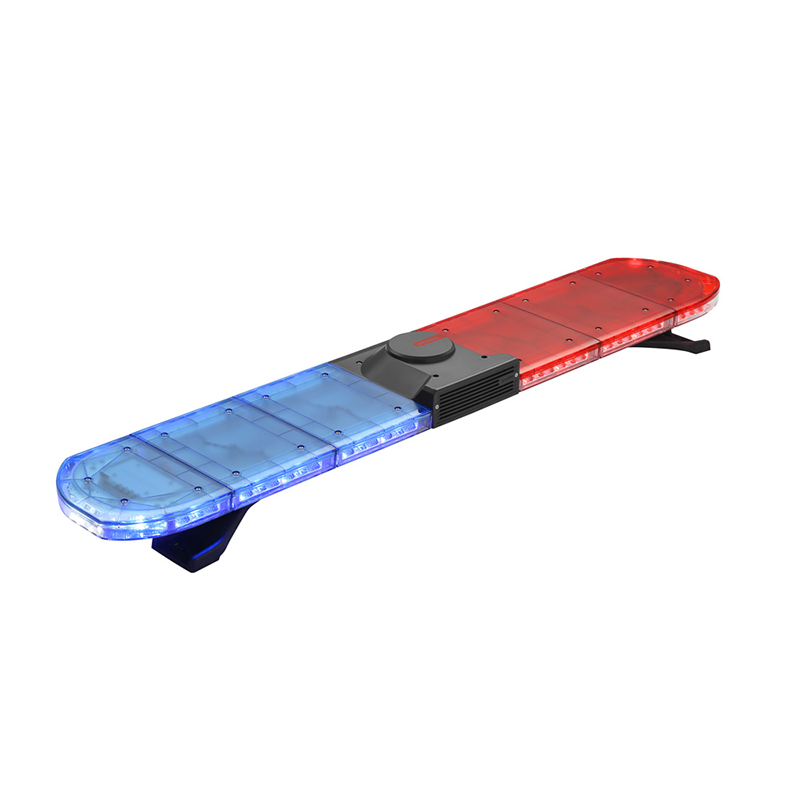

SKYLINE AIR S with Built-in Siren 48”

Item No.015001TB/RW(A)+STT/015001TBW(A)+STT/015002TBW(A) /015002TB/RW

FEATURE

Sleek, low-profile and aerodynamic design with only 8.3KG mass makes the  product one of the thinnest and lightest LED lightbars on the market .

Latest LED reflective technology, pwm frequency-converting techniques and 12/24V feature high lighting performance, low amp draw, and wide application scenarios .

Available in single and dual color models.

Anti-cracking, anti-yellowing polycarbonate lens delivers great weather resistance

Up-grated lens seal technology features excellent weather protection from worldwide 12 climates with IPX8 andIP9K rating against water and dust ingress

Aluminum chassis and patented thermal technology guarantee LEDs run as cool as possible and consistent lighting output

Simplified and highly integrated structure for easier assembly and maintenance

Versatility: Customizable configuration includes takedown, traffic adviser, dim, cruise, alley, work light, flood mode, and stop/tail/turn. Whatever functions you need you can find them in one unit; Skyline Air S helps to reduce your inventory.

Safer and hand-free Operation: Wire lightbar with corresponding vehicle function wires in parallel to sync turn, tail & stop.

Smart Park Mode: Automatically reduce the brightness and flashing frequency after pulling the handbrake to prevent the flashing from dazzling the passer-by and create a safer duty environment;

Sync with the 911Signal lighthead series at ease and make your vehicle more recognizable in darkness

Compatibility: CANBUS port allows Skyline Air S to communicate with your other CANBUS devices at ease.

Perfect for Police Sedan, SUV, Ambulance, Fire Engine, Trailer, etc.

Specifications

12-24 VDC

Flash Pattern: 62

Operating Temp: -30~700C

Mounting: Hook Mount; Permanent Mount

Size: 41.2mm (H), 220mm (W)

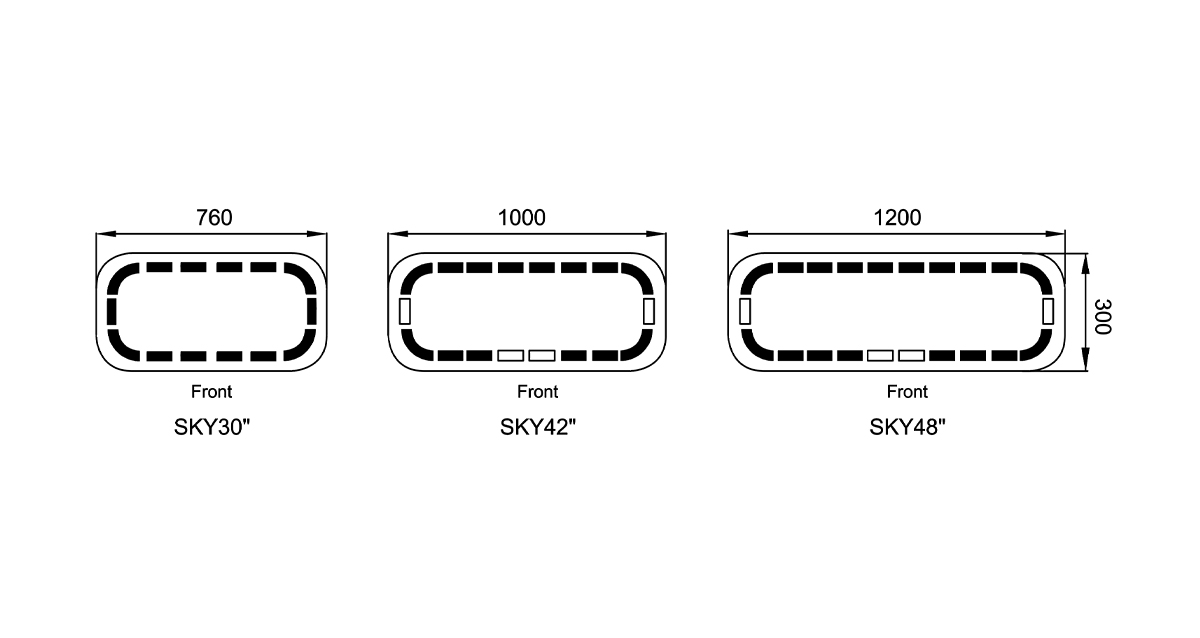

Standard length: 41” (1208.6mm), 48” (1208.6mm), 55” (1383.6mm), 62”

(1558.6mm), and 69” (1733.5mm)



Certifications

Meets ECE R10, ECE R65 TA2, TB2 and SAE Class1

IP LEVEL: IPX8, IPX9K

Versatility: Customizable configuration includes takedown, traffic adviser, dim, cruise, alley, work light, flood mode, and stop/tail/turn. Whatever functions you need you can find them in one unit; Skyline Air S helps to reduce your inventory.

Safer and hand-free Operation: Wire lightbar with corresponding vehicle function wires in parallel to sync turn, tail & stop.

Compatibility: CANBUS port allows Skyline Air S to communicate with your other CANBUS devices at ease.
Perfect for Police Sedan, SUV, Ambulance, Fire Engine, Trailer, etc.

SKYLINE AIR S 48寸(带喇叭).pdf

Download

SKYLINE AIR S DIMENSIONS_1.pdf

Download

Skyline Air S_with built-in siren INSTALLATION_1.pdf

Download
