LED 44" Directional Warning Stick Lightbar - PT4-8 (040304)

Item No.040304

FEATURE

Strobe Light Bars
For extremely easy installation, the PT4-8 TIR LED Traffic Advisor emergency light comes with light mount brackets, and can easily be wired into any existing system.

The cable you need for installation is also included with your purchase.
96 Watts of LED Light are Produced by 32 3-Watt LED Bulbs

When you need a deck warning light that will surely grab the attention of anyone around, the PT4-8 will surely do the trick. These amazingly bright dash warning light has 32 3-watt LED bulbs, which means it is capable of producing an amazing 96 watts of LED vehicle warning light output.
If an LED bulb burns out, or needs replaced, they should last about 100,000 hours, the bulb heads are easily screwed and unscrewed for easy replacement.

Model: PT4-8

Light Characteristics
LED Power
PT4-2: 8 PCS 3W LED
PT4-4: 16PCS 3W LED
PT4-6: 24PCS 3W LED
PT4-8: 32PCS 3W LED
LED Lifespan: 100,000H
Flash settings: 1-4HZ
Lens: TIR
Electrical Characteristics
Voltage: DC 10-30V
Max Power
PT4-2: 18W
PT4-4: 29W
PT4-6: 50W
PT4-8: 71W
Physical Characteristics
Colour Available
PT4-2 / PT4-4 / PT4-6: amber,
PT4-8: amber, red, blue, white and combination color
Ambient temperature: -20--+65℃
Waterproof: IP65
Mounting : T-Shaped Screws or Bracker
Flash patterns
PT4-2: 19
PT4-4/PT4-6/PT4-8: 30
Meet and Exceeds: ECE R65 XA1 00 0026, ECE R10 03 12468, SAE-07-W-2

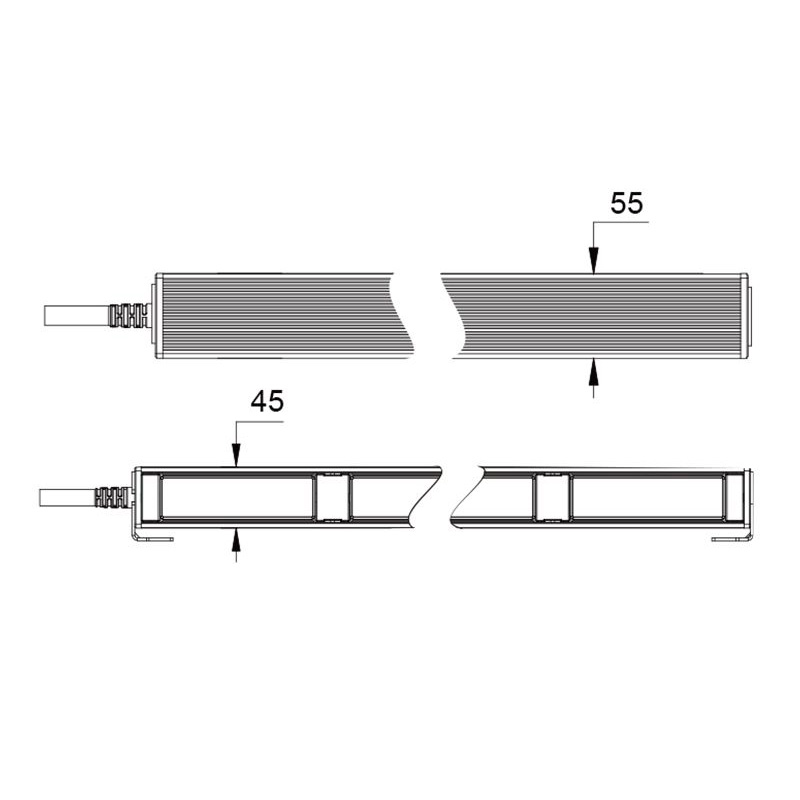

Product Dimension
PT4-2:28cm L x 5.5cm W x 4.5cm H(11.0 "L x 2.2" W x 1.8"H)
PT4-4:56cm L x 5.5cm W x 4.5cm H(22 "L x 2.2" W x 1.8"H)
PT4-6:84cm L x 5.5cm W x 4.5cm H(33 "L x 2.2" W x 1.8"H)
PT4-8:112cm L x 5.5cm W x 4.5cm H(44 "L x 2.2" W x 1.8"H)

The PT4-8 TIR Traffic Advisor is available in solid and split colors. The flash pattern memory contains 30 ready to use flash and directional patterns.Meet and Exceeds: ECE R65 XA1,ECE R10, SAE.
